Products
MG Mould has gained a renowned platform in the fields of pet preform mould manufacturing because of its distinguished products and reliable resources. It provides customized mould systems for all variants of preform designs and PET machines along with its mesmerizing 48 Cavitation’s Perform Mould. It also provides PET Moulds as per as required capabilities. Mould types ranging in 32, 24, 6 cavitations are our most well acquainted and well appreciated variations.
48 Cavity Pet Preform Mould
Highlights:
- Innovative design of injection components: less wear, lower risk of flashing, better cooling, excellent quality of parting line
- Optimized cooling layout to support fast cycle times and save energy costs
- Special hot runners design to reduce material stress and working pressures
Highlights:
- Application of internationally advanced two step dual taper locating technology
- Independent self-locking of each cavity to ensure high product concentricity
- Machining tolerances as low as 0.005 mm (5 microns)
- A balanced arrangement of cooling channels and turbulence ensures stable cooling and efficient heat transfer
- Manufactured in modular idea for standard interchangeable mould components for ease of replacement
- Variation in Preform wall thickness of ±0.10mm, relying on its length
- Preform moulds with valve gate Hot Runner system

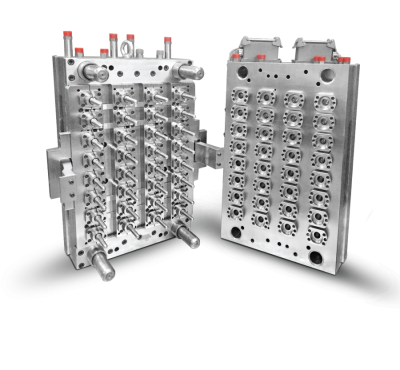

32 Cavity Pet Preform Mould
6 Cavity Jar Mould
MG Mould offers:
- Cold halves and mould components for moulds manufactured by Husky, ASB and other OEMs.
- Spares for hot runners of above moulds.
Mould conversion and light weighting:
- PET Mould Conversion that helps take advantage of light weighting opportunities, thread conversions, new preform and bottle designs.
- Light weighting and mould conversion services are designed to meet these needs in a timely and cost-effective way.
MG Mould offers a complete mould refurbishment and evaluation service for its moulds. The goal is to return the mould to the same high levels of productivity once enjoyed when the mould was first qualified for production.We optimize the mould and provide customer with data sheets and sample parts when the tool is ready for production before shipment.
We supply a set of essential spares & all tools necessary for mould maintenance free with each mould. In addition we maintain a large inventory of all essential spares for each & every mould manufactured by us to ensure our best services within 48 hours to guarantee uninterrupted services of our moulds.
Mould Spares
Pet Preform Mould Specification
| Mould Parts | Detail |
|---|---|
| Core & Cavity Insert | P.20 Imported Germany Grade-1.2316 |
| Neck Part | H-13 |
| Mould Base | P.20 with Grinding machine with each plate thickness tolerance 0.010 microns |
| Slider Half | P.20 Imported |
